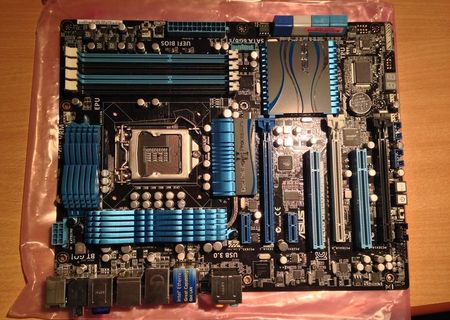

placa de baza Asus P8Z68-DELUXE GEN3
Procesor CPU Socket: 1155
Producator chipset: Intel
Model Chipset: Intel Z68
Numar procesoare: 1
Procesoare suportate: 2nd Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron
Memorie Memorii suportate: DDR3
Sloturi memorie: 4 x DDR3
Capacitate maxima memorie RAM (MB): 32GB
Frecventa memorie (MHz): DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/10 66 MHz Non-ECC
Conectivitate LAN integrat: Intel 82579
Video integrat: Nu
Audio integrat: Realtek ALC889
Numar SATA: 4 x SATA 3,4 x SATA 2
Porturi USB: 4 x USB3.0 (2 in spate si 2 disponibile prin header)
12 x USB2.0 (8 in spate si 4 disponibile prin header)
RAID integrat: Raid 0, 1, 5, 10
Audio: 6 x Audio jack(s)
Conectori interni: 1 x USB 3.0
2 x USB 2.0
eSATA: 1 x eSATA 3Gb/s
1 x Power eSATA 3Gb/s
Firewire: 2 x IEEE 1394a (unul disponibil prin header)
Porturi USB 2.0 Spate: 8 x USB 2.0
Porturi USB 3.0 Spate: 2 x USB 3.0
Porturi: 1 x Bluetooth module(s)
1 x Clear CMOS button(s)1 x IEEE 1394a
1 x CPU Fan
2 x Chassis Fan
2 x Power Fan
1 x S/PDIF out
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x Front panel audio
1 x System panel
1 x MemOK
PS/2 Keyboard: 1 x PS/2 keyboard/mouse combo
RJ45: 2 x RJ45
S/PDIF Out (Coaxial): 1 x Coaxial S/PDIF out
S/PDIF Out (Optical): 1 x Optical SPDIF Out
Sloturi Slot PCI-Express x16: 3 x PCI Express x16
Slot PCI-Express x1: 2 x PCIe 2.0 x1
Slot PCI: 2 x PCI
Format: ATX
BIOS: 64 Mb Flash ROM
Dimensiuni (L x l, cm): 30.5 cm x 24.4 cm
Caracteristici BIOS: UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3,
