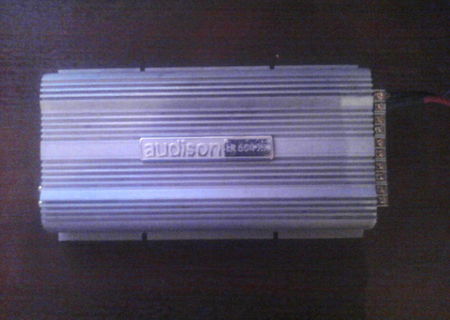

Statie Auto Audison LR 604 XR
ECHNICAL DATA
POWER SUPPLY
11 ÷ 15 VDC
IDLING CURRENT
1 A
MAX COMSUMPTION (Nominal Pwr)
26 A
MAX DYNAMIC POWER (4 ch x 4 Ohms)
60 W
MAX DYNAMIC POWER (2 ch x 4 Ohms) Bridge
(LR 604)
180 W
MAX DYNAMIC POWER (3 ch x 4 Ohms) Sub
(LR 604 XR)
60 + 60 + 180 W
CONT. NOMINAL POWER (Tol. +10 %; -5 %)
4 Ch x 4 Ohms; 0.3 % THD; 12 VDC
40 W (RMS)
CONT. OUT POWER (4 Ch x 4 Ohms; 13.8 VDC)
45 W (RMS)
CONT. OUT POWER (4 Ch x 2 Ohms; 13.8 VDC)
65 W (RMS)
MONO OUT POWER (2 Ch x 4 Ohms; 13.8 VDC) Bridge
130 W (RMS)
CONT. OUT POWER (3 Ch x 4 Ohms; 13.8 VDC)
45 + 45 + 130 W
DISTORTION THD (1 KHz; 90 % Nominal Pwr)
0.07 %
BANDWIDTH (-3 dB; Nominal Pwr)
4 Hz ÷ 100 KHz
CROSSOVER FREQUENCY
(LR 604 XR)
48 ÷ 4800 Hz
FILTER SLOPE
(LR 604 XR)
12 dB/Oct.
DAMPING FACTOR (4 Ohms)
120
RISE TIME 4.5 µS
SIGNAL / NOISE RATIO
98 dBA
INPUT SENSITIVITY
0.3 V ÷ 4 VRMS
INPUT IMPEDANCE
15 KOhms
LOAD IMPEDANCE Stereo
8 - 4 - 2 Ohms
LOAD IMPEDANCE Mono
8 - 4 Ohms
REMOTE IN 7 ÷ 15 VDC
DIMENSIONS (BxHxL) 175 x 50 x 330 mm (6.88 x 1.96 x 12.99 inch)
