Sursa Desktop 700W (800W Peak)

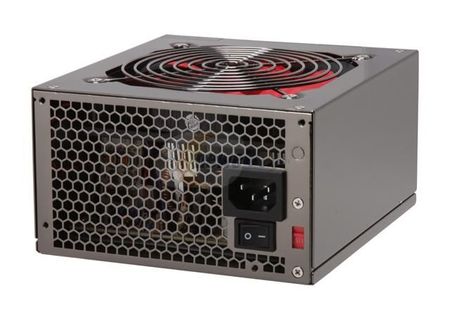

Sursa Desktop Sigma Focus SP700B 700W (800W Peak)Learn more about the Sigma Product SP700B
Model
Brand
SIGMA
Model
SP700B
S eries
FOCUS
Spec
Type
ATX12V
Maximum Power
700W (800W Peak)
Fans
120mm Red fans
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector
4
SLI
No
CrossFire
No
Modular
No
Efficiency
Up to 80%
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
12A / 115V, 7A / 230V
Output
+3.3V26A, +5V/30A, +12V1/20A, +12V2/20A, -12V/0.5A, +5VSB/3A
MTBF
>80,000 Hours
Approvals
UL, CUL, FCC, TUV, CE, C-tick, CCC, CB
Features
Connectors
1 x Main connector (20+4Pin)
1 x 12V(4/8Pin)
6 x Peripheral
4 x SATA
2 x Floppy
2 x PCI-E
Features
Dual 12V output circuits provide added system stability
Red 120mm silent fan
Durable gun metal electroplating chassis
High grade black mesh wrapped cabling
